Ergonomics And Screen Readability Sign Retroreflectometer STP-TSR

Brand Name : STP

Model Number : STP-TSR

Certification : CCC

Place of Origin : CHINA

MOQ : 1

Price : 3000-3500

Payment Terms : T/T

Supply Ability : 1000

Packaging Details : inner box and master carton , 1pc per carton

Test data : more than 99,999

Measurement color, red, green or blue : white, yellow, red, green or blue

Warranty : 1 year

Language : English

Error of repeatability measurement : ≤2%

Error of reproducibility measurement : ≤3%

Built-in battery capacity : 3500mAh

Ambient temperature : -5℃~+50℃

Ambient humidity : ＜98%, no frost

SD card : 8G

Weight : 1.7kg

Instrument size : 220mm × 250mm × 80mm (L×H×W)

Contact Now

Sign Retroreflectometer STP-TSR With Superior Ergonomics And Screen Readability

Using a retroreflectometer is the only way to objectively evaulate if a road marking or a road sign provides the

minimum retroreflection level stated in a standard – and thus provides the best possible guidance to safe driving

under various driving conditions.

STP-TSR is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs

and safety garments.

Main technical parameters

Measurement items	retroreflective coefficient cd .lx .m²
Measurement range	0---1999.9
Observation angle	0.2°
Angle of incidence	-4°
Testing spot diameter	32mm
Charger	DC 8.4V
Instrument size	220mm × 250mm × 80mm (L×H×W)

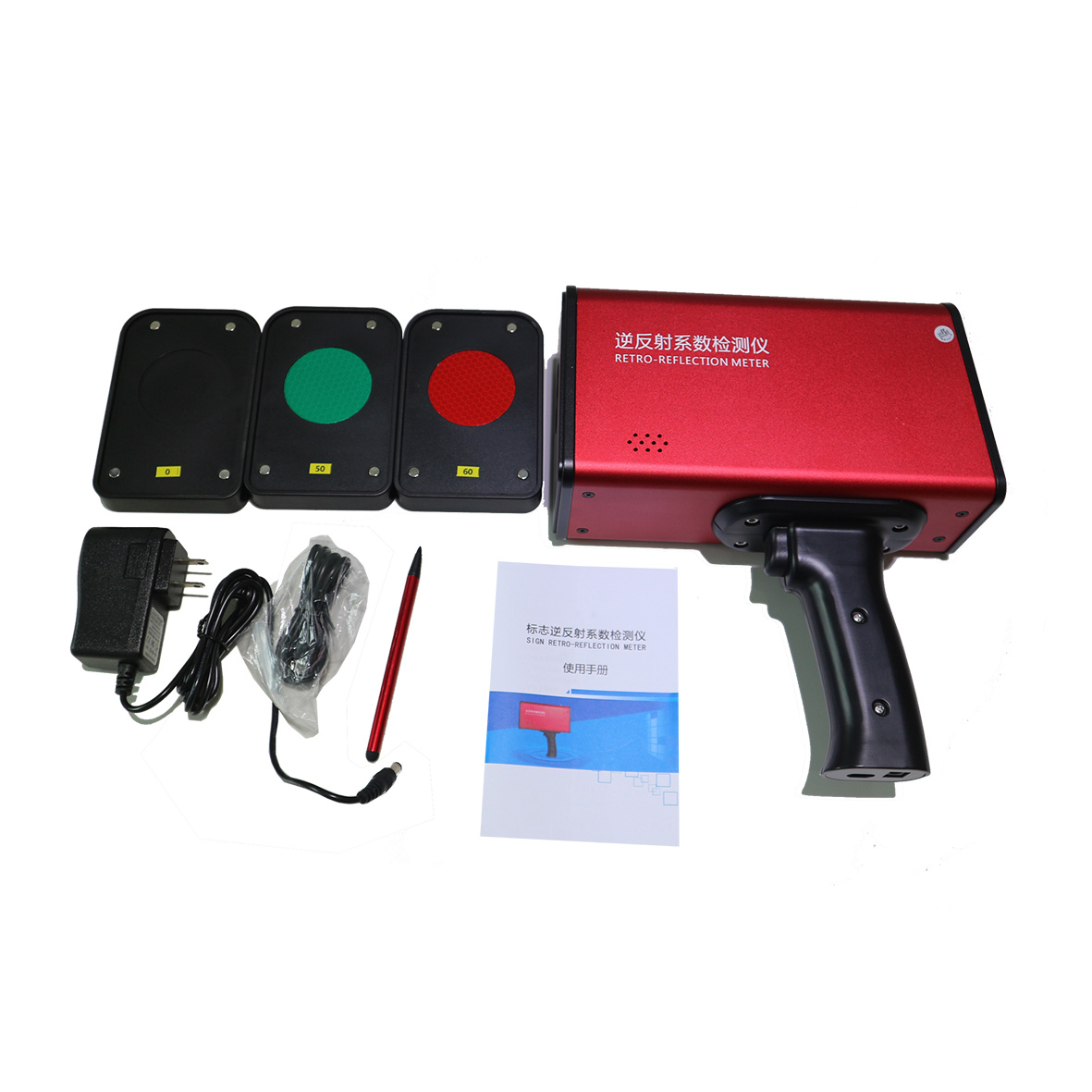

Packing list

Serial number	Name Specification	Number
01	Traffic Sign Retro-Reflection Meter	1
02	Charger	1
03	USB Date Line	1
04	Instructions	1
05	Certificate	1
06	Warranty Card	1
07	Calibration Board	1
08	Stylus	1

Ergonomics And Screen Readability Sign Retroreflectometer STP-TSR

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL, FEDEX, UPS, TNT, EMS : 3-7 working days

Any other shipment way could be negoticated
